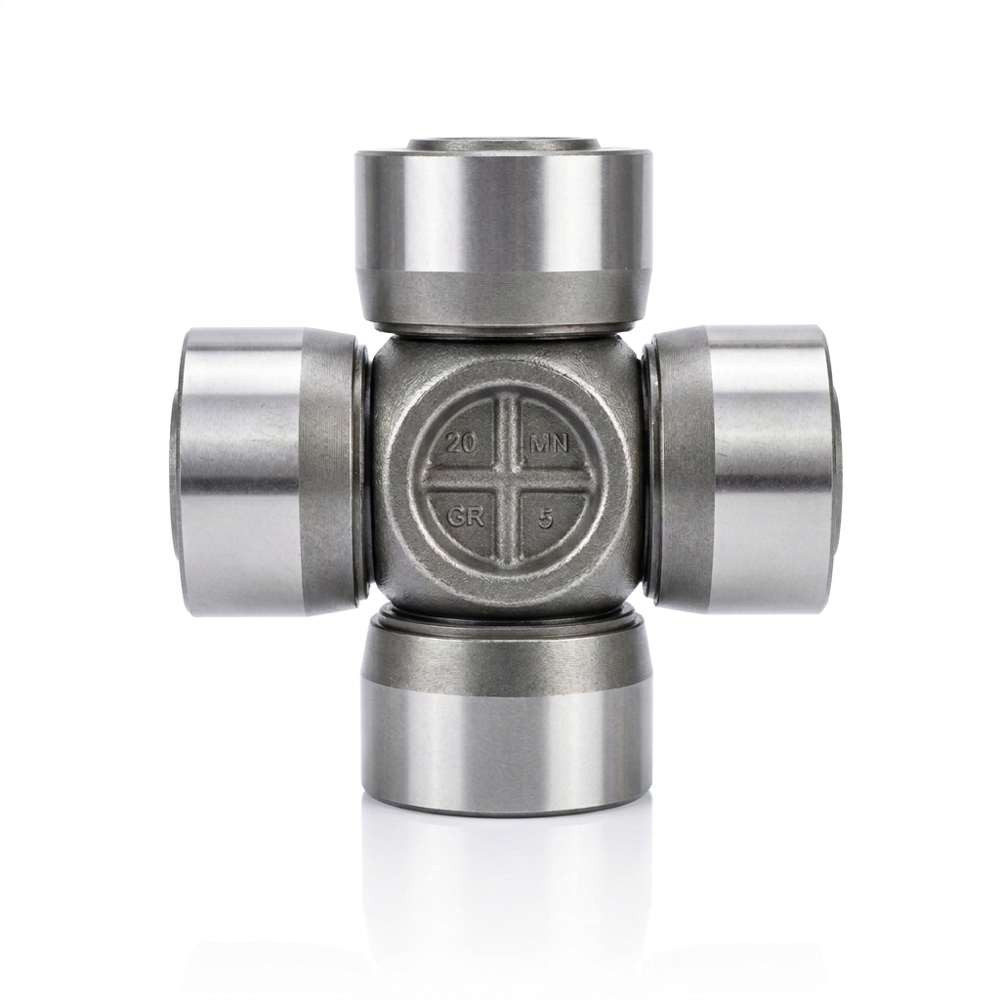

Cardan Shaft Joint Cross Heavy Duty

Price 22500.0 INR/ Number

Get a Price/Quote

Cardan Shaft Joint Cross Heavy Duty Specification

Temperature Range
100 Celsius (oC)

Display Type
Universal joint

Operating System
Cardan shaft

Referece No.
HI-101

Connecting Type
Cardan shaft joint

Color
Silver finish

Working Life
1 Years

Size
145 mm

Surface Treatment
Hardened Steel

Part Type
Cardan Joint

Load Capacity
110 Tonne

Corrosion Resistant
Yes

Material
20MnCr5

Product Type
Cardan shaft joint cross

Lubrication Type
Grease

Weight
55 Kilograms (kg)

Method
Hot forged

Warranty
Yes

Model No
145

Finish
OEM

For Use In
Industrial Cardan shafts

Cardan Shaft Joint Cross Heavy Duty Trade Information

Minimum Order Quantity
5 Number

Delivery Time
2 Days

About Cardan Shaft Joint Cross Heavy Duty

Industrial Cardan Shaft Joint Crosses (also known as the "spider") are critical components used to transmit torque between non-aligned shafts in machinery like rolling mills, conveyor drives, and steel plants.

Types of Industrial Joint Crosses

Industrial crosses are categorized by their mounting style and load capacity:

Wing Style: Used in heavy duty machinery; these feature a unique "wing" bearing plate for secure bolting.
Full Round (Bearing Plate): Common in high-torque industrial driveshafts (e.g., Spicer 10 Series).
Star Type: Frequently used in large-scale industrial assemblies like rolling mills with torque capacities up to 150 kNm.
Needle Roller Bearing Joints: High-precision crosses designed for smooth, low-friction operation in CNC machines and servo motors.

Technical Specifications

When sourcing an industrial cross, the following specifications are standard:

Material: High-grade alloy steel (e.g., 20MnCr5) or carbon steel, often hardened to 4065 HRC for wear resistance.
Size Range: Standard industrial sizes range from small 89 mm joints to massive 145 mm+ crosses for heavy manufacturing.
Load & Torque: Designed for heavy loads (up to 100 tonnes) and operating temperatures up to 100C.
