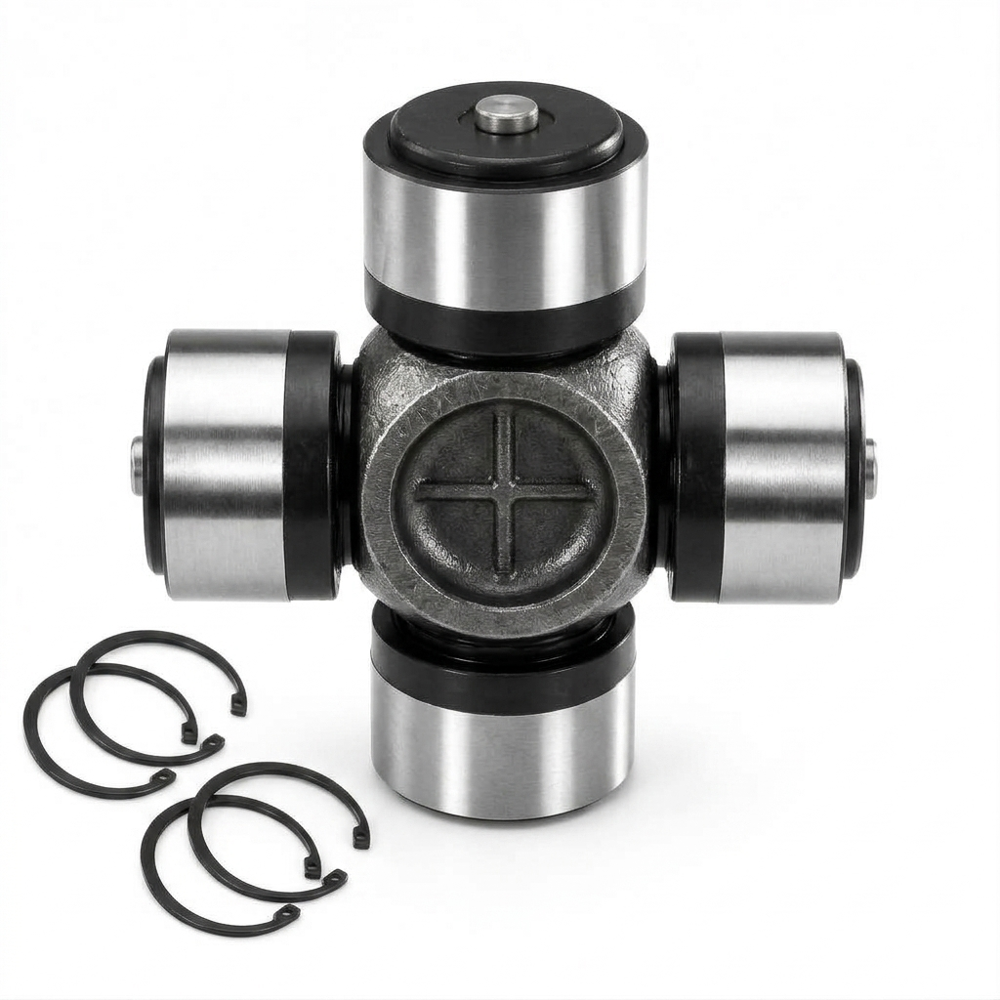

Cardan shaft joint cross 110mm

Price 11000.0 INR/ Number

Get a Price/Quote

Cardan shaft joint cross 110mm Specification

Size
110 mm

Weight
22 Kilograms (kg)

Temperature Range
100 Celsius (oC)

Referece No.
HI-105

Product Type
Cardan shaft Joint cross

Lubrication Type
Grease

Working Life
1 Years

Method
Hot forged

Model No
110 mm

Load Capacity
110 Tonne

Surface Treatment
Hardened steel

Display Type
Drive shaft

For Use In
Industrial Machinery

Corrosion Resistant
Yes

Connecting Type
Joint cross

Color
Silver Finish

Operating System
Cardan shaft

Material
20MnCr5

Finish
OEM finish

Part Type

Dimension (L*W*H)
110 Millimeter (mm)

Cardan shaft joint cross 110mm Trade Information

Minimum Order Quantity
10 Number

Delivery Time
2 Days

About Cardan shaft joint cross 110mm

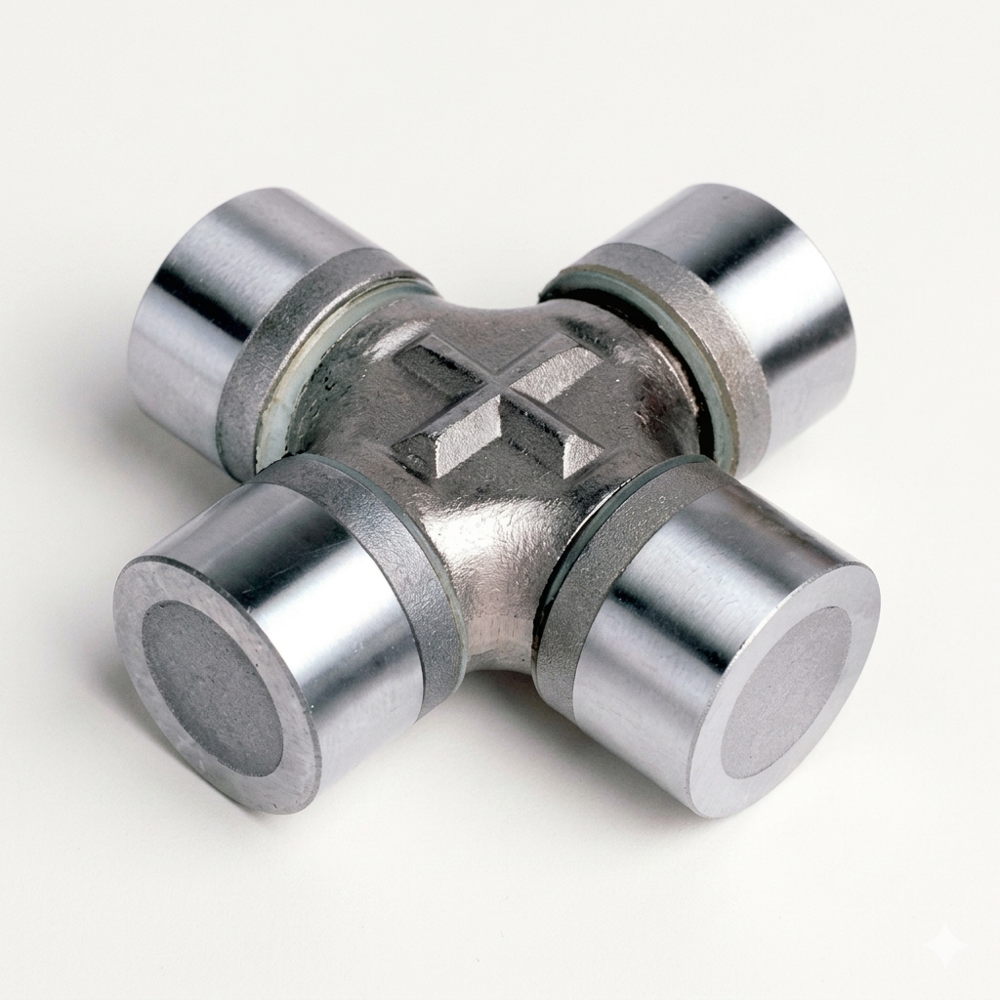

A heavy-duty Cardan joint cross (or universal joint cross) is a crucial mechanical component used in drive systems to connect two rotating shafts while allowing them to bend or operate at variable angles. It transfers rotational power (torque) smoothly, even when the shafts are misaligned or moving over rough terrain.

How it Works

The component features a cross-shaped design with four arms. Each arm is fitted with needle bearings and sits inside a yoke on the connecting shafts. This design acts as a flexible "hinge," absorbing vibrations and accommodating shaft angles while delivering uninterrupted power.

Key Characteristics

Material: Made of forged alloy steel (such as 20MnCr5) that is heat-treated and hardened to resist extreme wear.
High Load Capacity: Engineered to withstand immense stress, torque, and heavy shock loads without snapping.
Lubrication: features grease fittings (zerk fittings) to allow for re-lubrication, reducing friction and extending the part's lifespan.

Common Applications

Heavy-duty joint crosses are built for demanding environments where standard parts would quickly fail:

Automotive: 4x4, heavy-duty commercial trucks, and rear-wheel-drive vehicles (connecting the driveshaft to the differential).
Heavy Machinery: Construction equipment, excavators, and agricultural tractors.
Industrial: Mining equipment, steel mill machinery, and conveyor systems.
